Vibration Roller

RZ220V

Contact Supplier Product Video



view 1
view 2
view 3
view 4




Model RZ220V
Weight 1900kg
Max Working Weight 2000kg
Triction
Rated Speed 7km/h
Vertical Pendulum Angle ±7°
Gradeability 35%(无振动)
Compacting
Centrifugal Force 23.5KN
Static Line Force 97.5/106kg/cm
Vibration Frequency 65Hz
Water Tank Capacity 110L

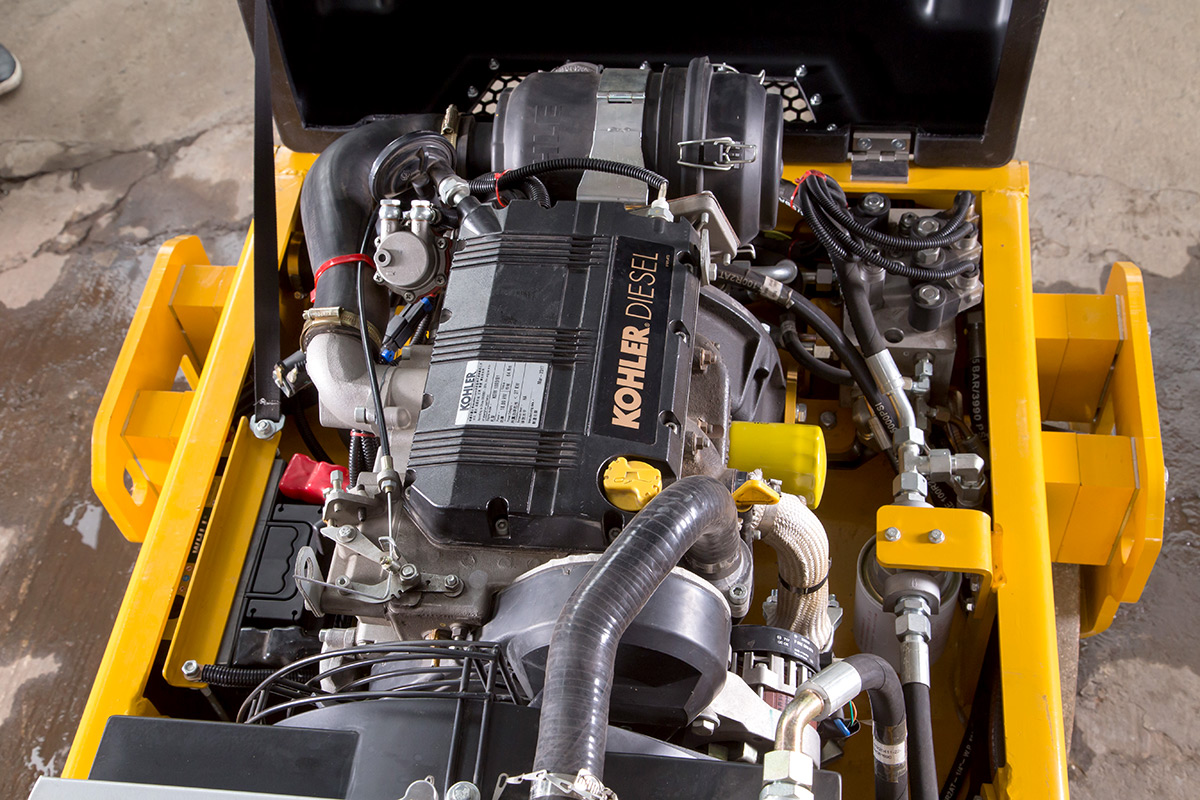

Engine
Manufacturer KOHLER KDW1003
Type Water-Cool Engine
Rated Power 18kW
Oil Capacity 23L
Hydraulic System
Hydraulic Pump Poclain
Hydraulic Motor Poclain
Emergency Braking/Stop Emergency Button
Measurement
Whole Machine Size 2300x1090x2276mm
Packing Size 2300x1090x2276mm
