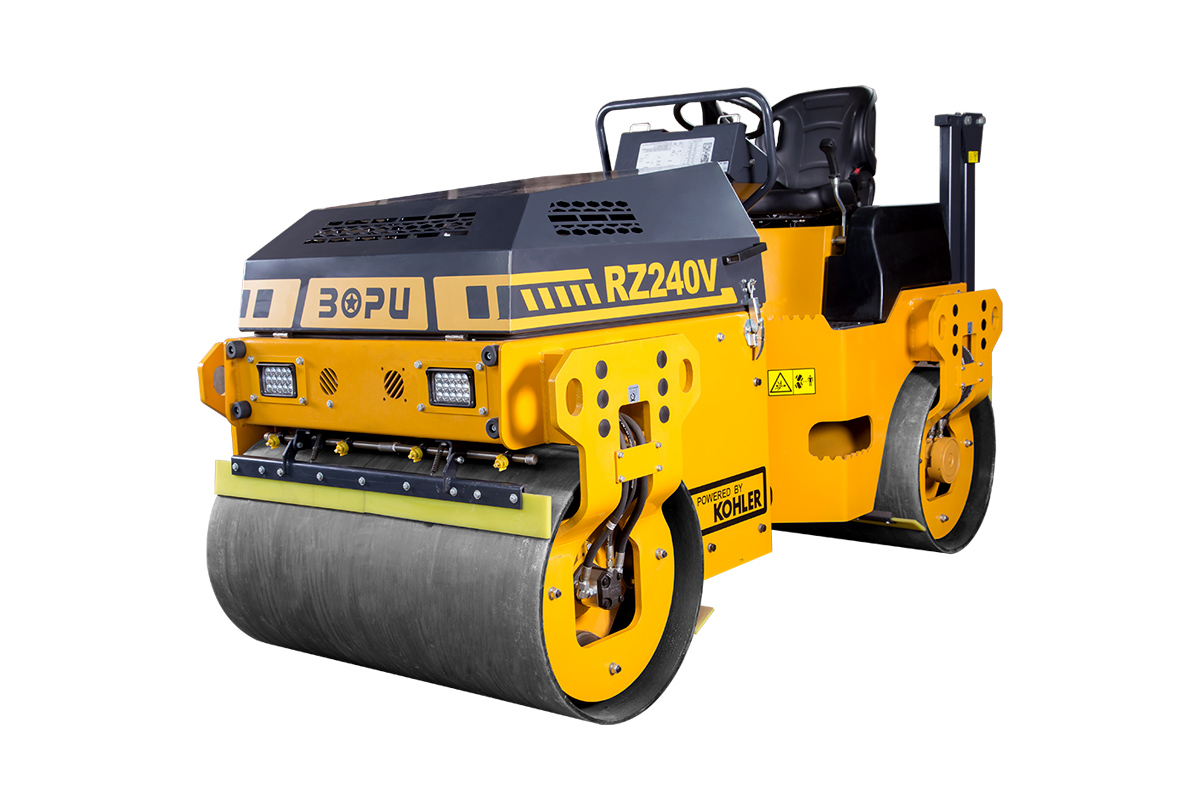

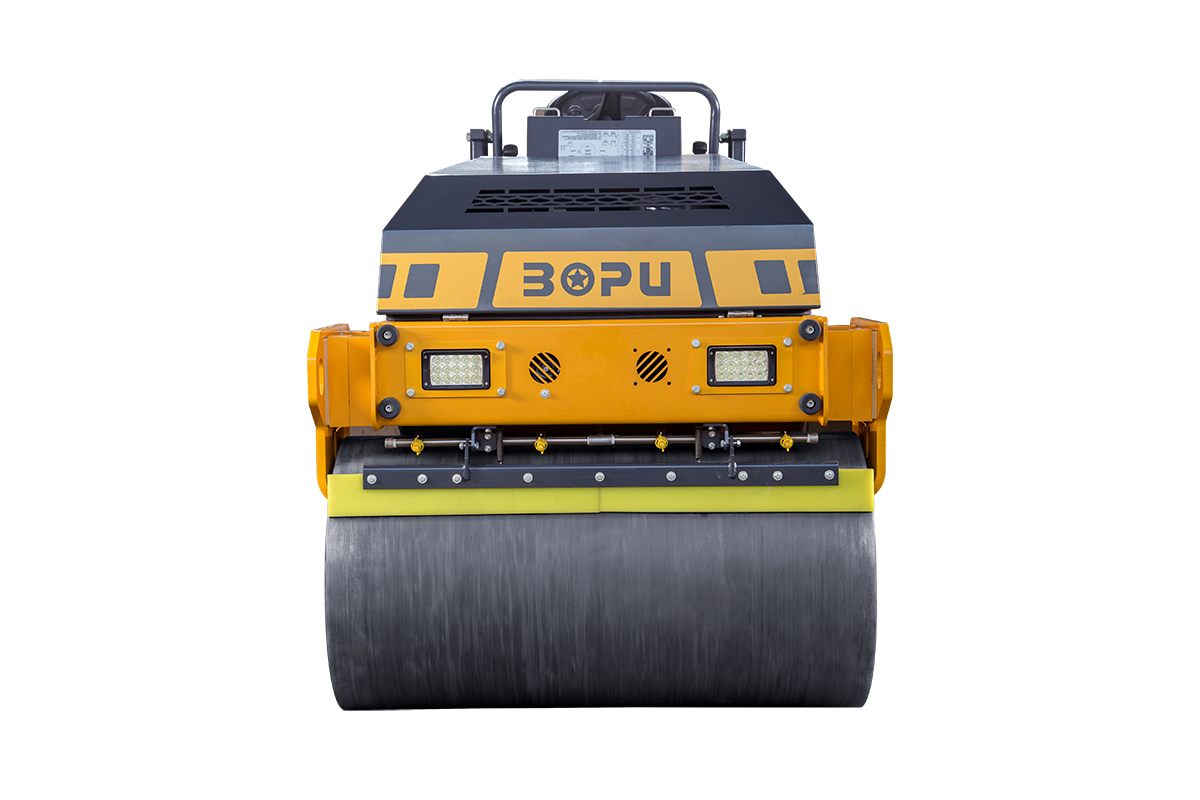

Vibration Roller

RZ240V

Contact Supplier Product Video



view 1
view 2
view 3
view 4


Model RZ240V
Weight 3600kg
Max Working Weight 3900kg
Triction
Rated Speed 9km/h
Vertical Pendulum Angle ±7°
Gradeability 40%(无振动)
Compacting
Centrifugal Force 32KN
Static Line Force 154/161kg/cm
Vibration Frequency 60Hz
Water Tank Capacity 200L

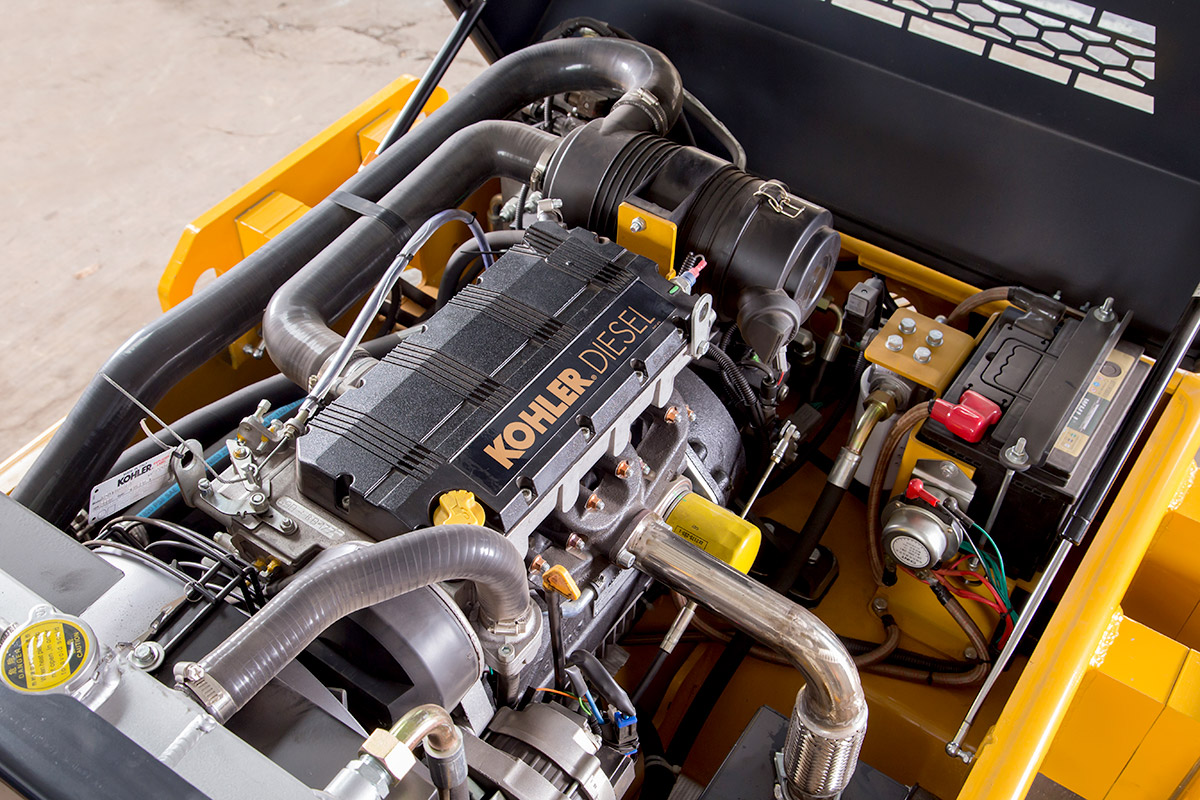

Engine
Manufacturer KOHLER KDW1404
Type Water-Cool Engine
Rated Power 21.7kW
Oil Capacity 40L
Hydraulic System

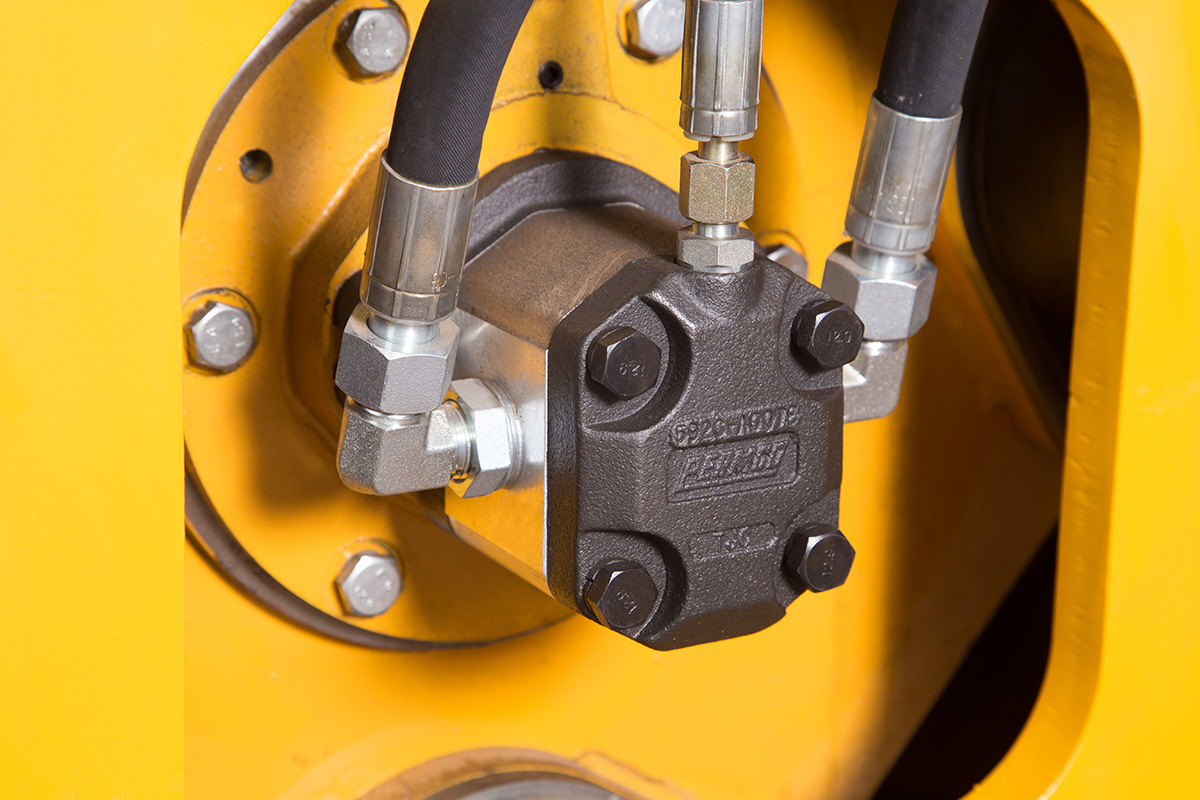

Hydraulic Pump Poclain
Hydraulic Motor Poclain
Emergency Braking/Stop Emergency Button
Measurement
Whole Machine Size 2745x1430x2650mm
Packing Size 2745x1430x2650mm
